Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

SHANGHAI FAMOUS TRADE CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

Brand Name : ZMKJ

Model Number : JGS2 Quartz tube

Certification : CE

Place of Origin : CHINA

MOQ : 10pcs

Price : by case

Payment Terms : T/T, Western Union

Supply Ability : 1000pcs/ month

Delivery Time : 1-4weeks

Packaging Details : carbon or wooden box

Material : JGS1 JGS2 Quartz

purity : 99.999%

Grade : JGS1,JGS2, JGS3,

Application : industry, medicine,chemstic

customzied : ok

diameter : dia5~dia200mm

surface : polished transparent

Operating Temperation : 1250°

Contact Now

High purityJGS2 JGS1 quartz tube with various customized thickness size and shape

High Temperature Quartz Tube

We are a manufacturer of Transparent Quartz Tube Furnace.
Size&design: Accept customize according to different diameter, thickness,length or sending your drawing.
Advantage of Quartz Tube Furnace:
1)High purity :SiO2> 99.99%.
2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4)Health care and environmental protection.
5)No air bubble and no air line.
6)Excellent electrical insulator.

Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

Properties:

1. SiO2> 99.99%, high purity quartz tube

2. Operating Temperature: 1250℃

Soften Temperature: 1730℃
3.Excellent visual and chemical performance.
4. without surface coating
5. Health care and environmental protection
6. Any dimension can be made.
7. CE RoHs SGS approved.

Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

Application:

1. High temperature resistance glass can work under 1200°C continuously, and in short time can even work under 1450°C, its softening point is 1730°C.
2. Quartz glass will not react chemically with acid except hydrofluoric. Acid-stable is 30 times of ceramic and 150 times of stainless steel. Especially chemical stability is incomparable at low temperature.
3. Electric insulation.
4. Excellent thermal shock stability
5.High transmission above 85%
6.Widely used in semiconductor, lighting and electric heating industries.

SiO2 99.997%
Density 2.2 g/cm3
Degree of hardness moh' scale 6.6 Pa
Melting point 1732°C
Working temperature 1100°C
Max temperature can reach in a short time 1450°C
Acid tolerance 30 times than Ceramics,150 times than stainless steel
Visible light transmittance above 93%
UV spectral region transmittance 80%
Resistance value 10000 times than ordinary glass
Annealing point 1180°C
Softening point 1630°C
Strain point

1100°C

Specification & Properties

Outside Diameter
1-400mm
Length
1-4000mm
Wall Thickness
0.5 MM-40 MM
Density
2.2g/cm3
Compressive Strength
1100Mpa
Young's Modulus
72000Mpa
Modulus of Rigidity
31000Mpa
Mohs Hardness
5.5~6.5
Transformation Point
1280°C
Softening Point
1780°C
Annealing Point
1250°C
Specific Heat (20 ~ 350 °C)
670J/kg.°C
Thermal Conductivity (20 °C)
1.4W/m.°C
Index of Refraction
1.4585
Thermal Processing Temperature
1750~2050°C
Short-term Working Temperature
1300°C
Long-term Working Temperature
1100°C
Strain
1270 C Fused The Quartz Glass Brick
PPM Grade
Controlled 10/20/100 PPM
Electrical Resistivity: 1000℃
1x106 Ω. cm

The chemical composition of clear quartz glass: (unit: ppm)

AL
Fe
K
Na
Li
Ca
Mg
Cu
Mn
Cr
5-12
0.19-1.5
0.71-1.6
0.12-1.76
0.38-0.76
0.17-1.23
0.05-0.5
0.05
0.05
<0.05
B
Ti
<0.1
<1

Spectral transmission of clear quartz glass at 1.0mm thickness

mm
<220
255
280
315
350
380
590
780
%
89
91
93
93
93
93
93.2
93.4

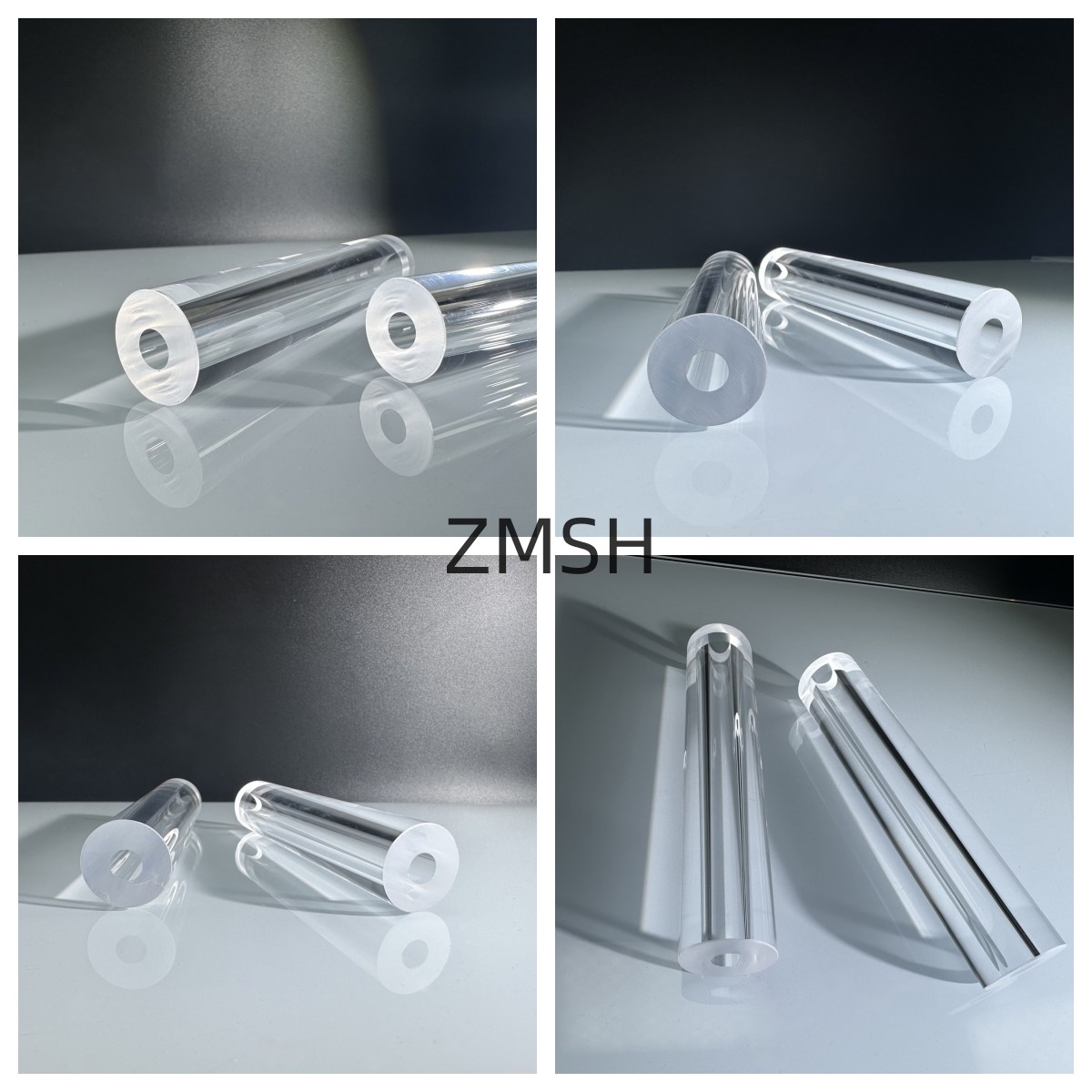

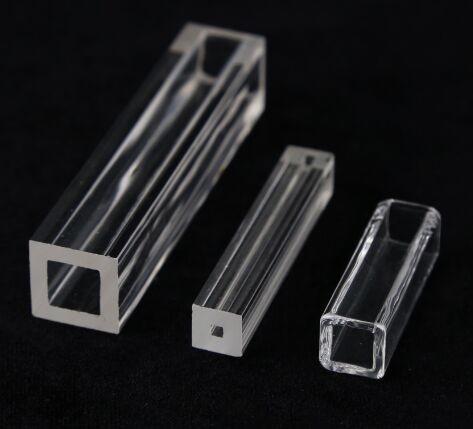

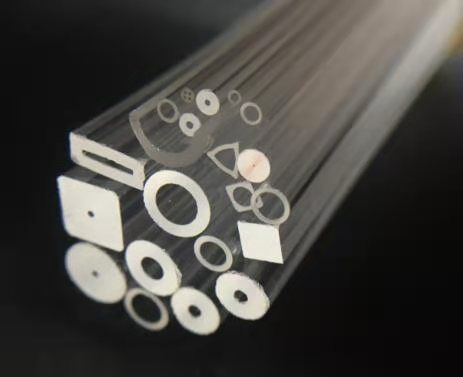

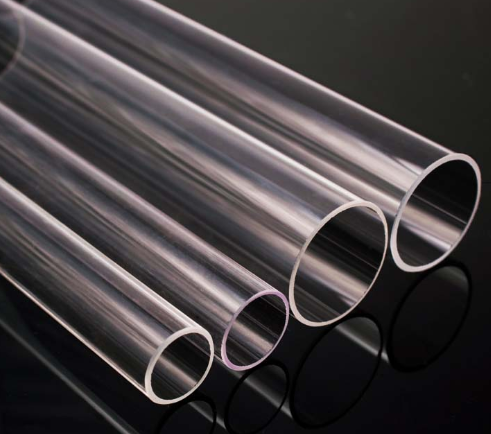

Prodcution detail

Polished Medicine Dia 200mm JGS2 JGS1 Quartz TubePolished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

Polished Medicine Dia 200mm JGS2 JGS1 Quartz TubePolished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

Actual Delivey show

Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

Our Services

1. Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.

2.Sample evaluation

Provide sample and trial order are accepted for the quality evaluation.

3. Strict quality control

Arrange production on time and control quality strictly.

4. Short delivery time

Book the earliest vessel or plane to guarantee the delivery time.

5. Professional and complete shipping documents

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

6. Warm and considerable after-sale service

Company Information

zmkj is one of leading manufacturers and distributors of high quality refractories for use in industries including semiconductor glass wafers and lens works.

Our company can provide not only the domestic and foreign customers excellent quality of high-temperature thermal insulation material, but also the first-rate service including professional furnace lining design, installation supervision, engineering construction etc.

We can provide our customers with professional and personalized products and engineering services according to the actual working condition and requirements of each customer, in order to meet customers' increasing demand of energy-saving and products quality improving, Our tenet is: quality and credibility is fundamental, technology and service is the life.

FAQ

HS Code: 7011901000

Orginial certificate: Can be provided.
